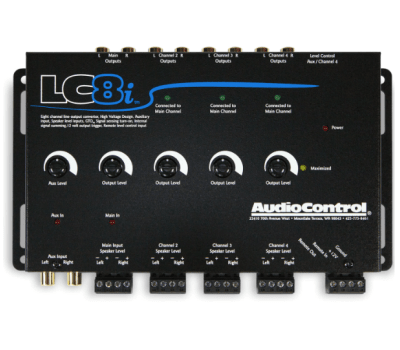

AudioControl LC8i

AudioControl LC8i
AudioControl LC8i

The LC8 from AudioControl is the latest addition to our line of
OEM interface products that connect aftermarket amplifiers
with factory installed systems. The high impedance inputs of
the LC8 will accept two, four, six or eight amplified speaker
level channels (up to 400 watts!) and convert them to a high
quality pre-amp signal.

Price: £254.99

Technical Specification

Inputs
Speaker Level Inputs: 4 (8 channels)
Maximum Input (speaker level): 400W per channel at 4 Ohm
Preamp Inputs (Aux): 1 (2 channels)
Input Impedance: 20k Ohm

Outputs
Preamp Outputs: 4 (8 channels)
Maximum Output Level: 8.5Vrms
Output Gain: ±12dB
Output Impedance: 150 Ohm

Performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz

Control
Remote In
12VDC Remote Out (always active when unit is on)

General
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A
weights & dimensions
Dimensions: 8.6"W x 4.75"D x 1.2"H
Weight: 3.0lbs (1.4kg)
