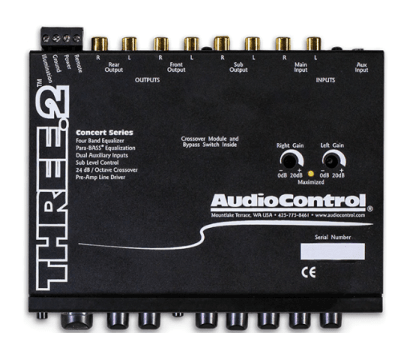

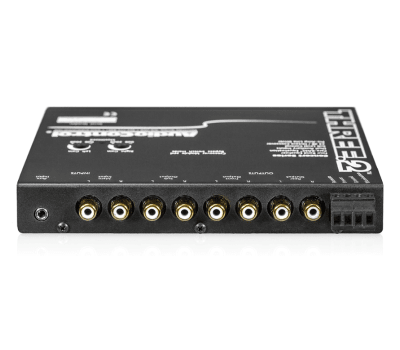

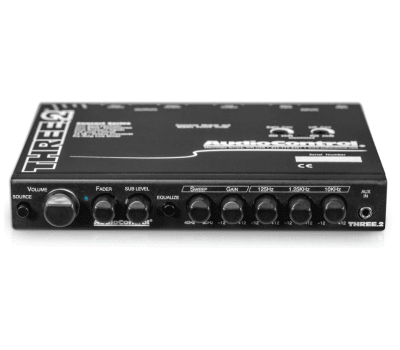

The THREE.2 is AudioControl's in-dash car audio processor
that combines a four-band stereo EQ along with a 4 channel,
2-way electronic crossover. This one-box-solution is a
great car audio processor for enthusiasts who want the sonic
benefits of AudioControl components but have limited
installation space.

Price: £329.99

Technical Specification

All specifications are measured at 14.4 VDC (standard
automotive voltage). As technology advances, AudioControl
reserves the right to continuously change its specifications.
Maximum input/output level . . . . . . . . . . . . . . . 9.5Vrms/13V peak
Frequency response . . . . . . . . . . . . . . . . . . . . . . . . 20Hz-20kHz;+/-1dB
Total harmonic distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.01%
Signal to Noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -110dB
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20K ohms
Output Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 ohms
Input gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-20dB
Equalization Cut/Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +/-12dB
Crossover slope . . . . . . . . . . . . . . . . . . . . 24dB/octave Linkwitz Riley
Factory crossover setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90Hz
Power supply . . . . . . . . . . . . . . . . . High headroom PWM switching
Power draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250mA
Recommended fuse rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Amp
Illumination Color . . . . . . . . . . . . Blue or Red (LED back lighting)
Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1”H x 6.75”W x 5”D
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 lbs
Country of origin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . U.S.A
