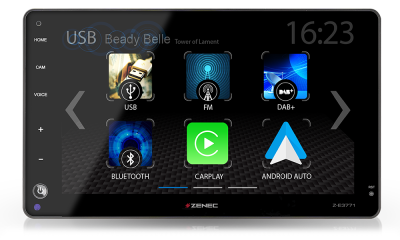

Vehicle-specific infotainment system for Fiat Ducato III and the Citroën Jumper II, Peugeot Boxer II, Opel Movano C and Toyota Proace Max – all models built from 2006 / 2021 / 2024 onwards
Touch sensitive, capacitive 9″/22.9 cm LCD-TFT display (1024 x 600 pixels) with real glass surface and adjustable position: vertical tilt angle 5° forwards, vertical display height +27.5 mm upward
OSD menu in 10 different EU languages
DAB+ tuner with DAB-DAB Following, MOT slideshow, DLS-text and Comfort Scan function
FM RDS radio
Works with wireless Google Android AutoTM
Works with wireless Apple CarPlay
Bluetooth 5.0 hands-free module with HFP v1.7 and A2DP music streaming

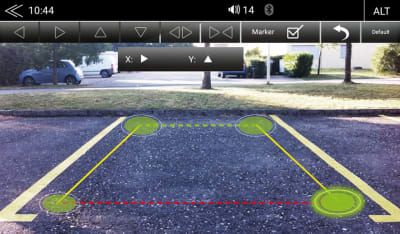

Control of two CVBS / AHD*1 signal camera systems with auto switching and individually adjustable distance guide lines
Ready for connection and control of ZENEC “Multi-view” reversing camera systems
CAM sensor key for direct camera function control on device front panel (Cam1, Cam2)
Integration of multifunction steering wheel control buttons*2
Linux operating system for embedded systems that can be updated via software update*3
Multicolor-color sensor key illumination with preset “white”
Z-EACC-RC1 “Maxi” IR remote control andstandard IR remote control
4 x 50 W amplifier
Vehicle Compatibility
Model Model Type Model Year
FIAT Ducato III 250*1 2006 – 2023
FIAT Ducato III Series 8 / 9*2 2021 – 2024
FIAT Ducato III Series 2*2 as of 2024
CITROËN Jumper II 250*1 2006 – 2024
CITROËN Jumper II Series 2*2 as of 2024
PEUGEOT Boxer II 250*1 2006 – 2024
PEUGEOT Boxer II Series 2*2 as of 2024
OPEL Movano 250*1 2021 – 2024
OPEL Movano Series 2*2 as of 2024
Toyota Proace Max*2 as of 2024
*1The N-XFDUC-1D7 mounting kit is required for installation. *2The N-XFDUC-1D8 mounting kit is required for installation.
The Z-E3771 is pre-setup for direct use in vehicles of the newer 8/9/2 series of model years as of 2021/2024. The settings for the steering wheel remote control and sensor key illumination can be adjusted in the setup menu.
The original tablet/document holder on the dashboard – if present – is functionally impaired by the installation of the Z-E3771
and cannot be used anymore.
To install a Z-E3771 device, the vehicle must be equipped with the (aftermarket) radio installation option.
The Z-E3771 is not compatible with vehicles fitted with OE device (radio, naviceiver).
To provide sufficient antenna signal levels for correct tuner function, the vehicle must be equipped with a high-quality active
antenna system (FM/DAB+).
