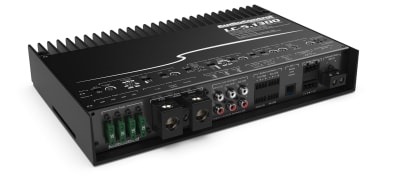

AudioControl LC 5.1300

AudioControl LC 5.1300
AudioControl LC 5.1300

This powerful 3 or 5-channel features up to 8 summable input channels and high output channels, 4 X 100W + 1 X 300W into 4 Ohms, Featuring AudioControls proprietary Maximum Input Level Control to avoid clipping on the inputs the amplifier also features signal sensing power up as well as a host of filtering options. ACCUBASS bass restoration system is built-in as standard. The perfect OEM integrator for your installer to build from.

Price: £969.99

Technical Specification

inputs
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms
outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 100 W x 4 + 300 W x 1
2 Ω – 200 W x 4 + 500 W x 1
Bridged 4 Ω – 400 W
performance
Frequency Response: 20 Hz – 22 kHz
Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
THD+N: < 0.1%
Minimum Power / Ground Wire Gauge: 3 AWG wire
Fuse Rating: 4 x 30 A
Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
weights & dimensions
Dimensions: 12.0″W x 8.0″D x 2.1″H
Weight: 7.2lbs. (3.3kg)
