AudioControl EQL

AudioControl EQL
AudioControl EQL

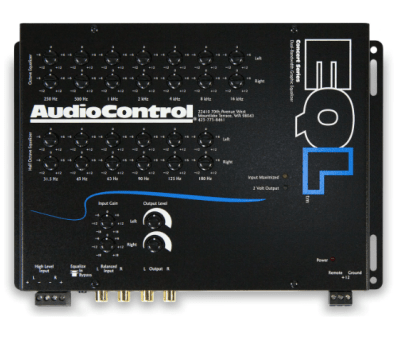

The EQL works wonders with any 2 channel audio system: From existing factory installed setups to custom audiophile- grade systems. Level-matching circuitry allows connection to either preamp-level or speaker-level inputs. The EQL also features thirteen-band, dual-bandwidth equalisation and a Programmable Frequency Match (PFM) filter for precise bass control.

Price: £279.99

Technical Specification

All specifications are measured at 14.4 Vdc (standard automotive voltage).
Frequency Response: 10 Hz to 20 kHz ? 1 dB
Total Harmonic Distortion (THD): 0.005%
Signal to Noise Ratio (SNR): 110 dB at full output
Maximum Output Level: 7.5 volts rms
Input Gain: ? 18 dB
PFM Filter Slope: 18 dB per octave
PFM Frequency: Programmable 15 to 100 Hz
Factory Shipped @ 33Hz
Power Supply: Variable isolation. Trans-
former switching supply
Fuse Rating: 2 amps
Size: 1.25? h x 8.9? w x 6.9? d
Weight: 3 lbs
Balanced Input Yes
Ground Isolation Jumpers Yes
Country of origin: USA
