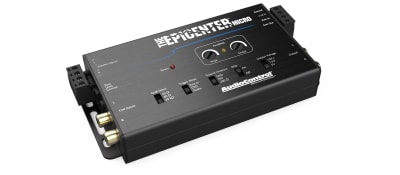

The Epicentre Micro backs AudioControl's renowned bass restoration technology into a compact box with OEM integration feature. These include Speaker level inputs with selectable impedance. All of the familiar features are included such as, Remote turn on, automatic signal sensing and line inputs. A high signal to noise ratio and low THD figure show that the miniature size has in no way led to any less performance!

Price: £299.99

Technical Specification

Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
Line Level Input: 1 (2 channels)
Line Level Input Impedance: 7kΩ
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms/13V peak
Output Impedance: 150Ω
Total Harmonic Distortion: 0.03%
Signal to Noise: >105 dB
Frequency Response: 10 Hz – 22 kHz ±1 dB
Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)
Current Draw: 300 mA
Recommended Fuse Rating: 1 A
Dimensions: 5.9″L x 3″D x 1″H
Weight: 0.6 lbs. (0.27 kg)
