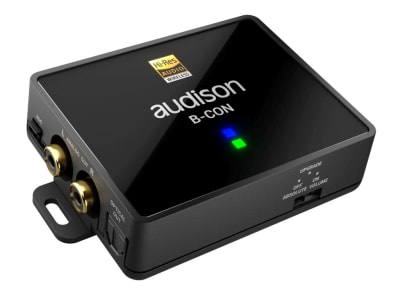

Audison bit B-Con II

Receiver Tech Data

Power Supply Voltage
5 ÷ 24 VDC
Idling Current
40 mA
Remote IN
5 ÷ 24 VDC (3.5 mA)


Bluetooth Data

Type: Bluetooth 5.0 + EDR

Codec: LDAC, AAC, SBC

Profile: Bluetooth A2DP 1.3, AVRCP 1.6

Digital Input
Optical: S/PDIF Optical (Max 24 bit/192 kHz)
Digital Output
Optical: S/PDIF Optical (Max 24 bit/192 kHz)
Analog Output Performance
Bandwidth (Max) 5 ÷ 48k Hz

Output Level 2 VRMS

Distortion – THD @1 kHz, 1 VRMS 0.003%

S/N RATIO (A weighted) 107 dBA


Bluetooth Specifications
Bluetooth Type
Bluetooth 5.0 + EDR
Bluetooth Connection
A2DP 1.3, AVRCP 1.6
Codec
LDAC, AAC, SBC
Certifications
CE-RED; FCC; ISED; SRRC; RCM; MIC; WPC; ROHS; REACH2.0;
Max Paired Devices
1
Max Distance
10


Inputs / Outputs / Controls
Aux Sel Wire
Yes (active +12V with streaming ON)
Digital Input
Optical S/PDIF
Master En Wire
Yes (active +12V with streaming OFF)
ADC Port
Yes
Absolute Volume Upgrade Switch
Yes, user selectable
Status Leds
Yes
Digital Output
Optical S/PDIF
Digital Output Sample Rate
24 bit/96 kHz Max
Analog Output
Yes (RCA stereo)
Analog Output Bandwith
5 ÷ 48k Hz
Analog Output Level
2 Vrms
Analog Output THD
0.003%
Analog Output SNR
107 dB(A)

SIZE
W x H x D mm / In. 90 x 60,4 x 23 / 3.54 x 2.38 x 0.91
