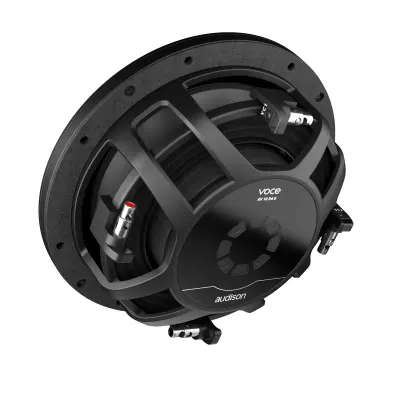

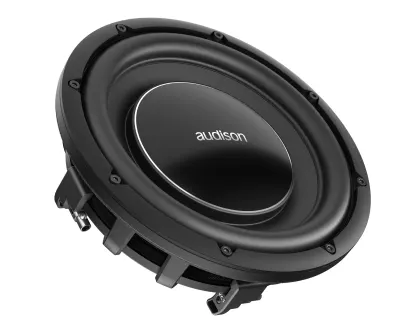

Audison Voce II - AV 10 D2 II

Audison Voce II - AV 10 D2 II
Audison Voce II - AV 10 D2 II

AV 10 D2 IISubwoofer Driver | 250 mm | Grille included Designed for tight spaces and dynamic performance, the AV 10 D2 II delivers powerful, articulate low frequencies with the precision and control that define the VOCE II line.Its dual 2-ohm voice coil configuration provides greater flexibility for low-impedance system design, allowing optimal power transfer from high-performance amplifiers. The subwoofer features a 1.5-inch CCAW voice coil, FEM-optimized motor assembly and a die-cast aluminum basket with integrated cable-routing hooks—each detail engineered to ensure stability, thermal efficiency and long-term reliability.The extended-profile dust cap improves cone rigidity and damping, while the internal Radial Reinforcement Framework strengthens the mechanical structure during high-excursion operation. Airflow Venting Cooling technology ensures effective heat dissipation, preserving performance even under prolonged stress.Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), the AV 10 D2 II delivers deep, clean and fast bass, ideal for systems where space is limited but sonic expectations are high. It is more than a compact subwoofer, it is a VOCE II-class component built to bring the emotion of music into every detail of your sound system.

Price: £419.99

Technical Specification

Nominal diameter
250 mm (10 in)

Impedance
2+2 Ohm

Power Handling - Peak
1100 W

Power Handling - Continuous
550 W

Sensitivity
83.5 dB

Frequency Response
25 - 400 Hz

Voice Coil Ø
38.6 mm (1.5 in)

Chassis Material
ALUMINIUM

Magnet Material
HIGH DENSITY FLUX FERRITE

Magnet size D x d x h
134*57*36 mm (in.)

Voice Coil Material
CCAW

Former Material
GLASS FIBER

Cone Material
POLYPROPYLENE

Xmax
16.8 mm (0.66 in)

Xmech
20 mm (0.79 in)

Voice Coil Winding Height
37 mm (1.46 in)

Gap Height
7 mm (0.28 in)

Recommended Enclosure
13.2 l (0.466 ft)

Recommended Tuning
51 Hz

Note
The data below are specified with the VCs connected in series (2+2).
