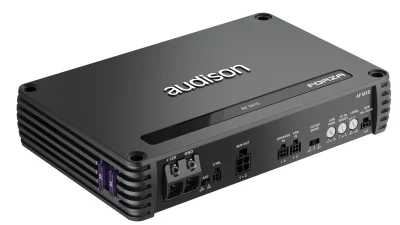

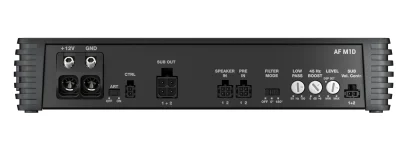

Audison Forza AF M1D

Channels 1
Class D-Class
Hi Level Input Yes
Low Level Input Yes
Digital Input No
Power supply voltage / fuse 11 ÷ 15 VDC
Operating power supply voltage 6.5 ÷ 17.5 VDC
Idling current 1.3 A
Idling current when off 0.005 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power 65 A
Remote OUT 6.5 ÷15 VDC (150 mA)
Remote IN 4 ÷15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 VDC
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.03%
Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz
S/N ratio A (A weighted @ 1 V): 105 dBA
Damping factor A (100 Hz, 4Ω, 2 VRMS): 125
Input sensitivity Pre-In 0.6 ÷ 6 VRMS
Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
Total Power RMS 1000 W
Minimum load impedance 1 Ω
Output Power (RMS) @14.4 VDC, 1% THD 1Ch @ 4Ω: 600 W 1Ch @ 2Ω: 1000 W 1Ch @ 1Ω: 1200 W
Adjustable Crossover Yes
Dimensions 240mm x 47 mm x 156 mm
