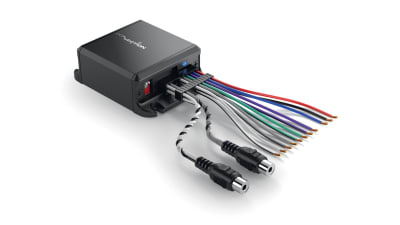

CONNECTION SONUS SLI 2.2

1. EXCELLENT AUDIO QUALITY
Conversion achieved thanks to high-quality transformers that preserve the entire bandwidth and to the STOP NOISE technology offering total rejection of electrical interference as transformers provide a galvanic separation between source and amplifier.
2. EASY TO INSTALL
Robust and compact shielded aluminium chassis with connection diagram on the bottom and connection panel on one side that facilitates installation even in the rear dashboard.
3. SINGLE CONNECTOR
Wiring labelled and terminated with Molex* connector featuring a tear-proof plastic strip, for a long-lasting and easy connection.
4. TOTAL OEM INTEGRATION

DSR (Double Step-Down Ratio)

High-Power (8:1) and Low-Power (4:1) step down conversion ratio selectable via DIP switch independently for each input, front and rear, for a correct interface with both traditional OEM sources (Low-Power) or OEM amplifiers featuring high-voltage outputs (High-Power) up to 35V RMS.

USS (UNIVERSAL SPEAKERS SIMULATOR)

It simulates the load of the speakers on the 4 input channels (Front and Rear), for a complete compatibility of the interface with the OEM sources that detect the original speaker load (impedance) connected to their outputs.

ARTTM (AUTOMATIC REMOTE TURN-ON)**

Function compatible with all OEM sources, including the latest generation ones, which creates a 12 V output for the remote control of the amplifier when the SLI is powered.
