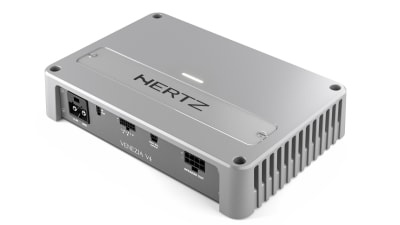

Hertz Marine VENEZIA V4

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
4Ch 160 W x 4 (4Ω)
4Ch 290 W x 4 (2Ω)
3Ch 160 W x 2 (4Ω) + 580 W x 1 (4Ω)
3Ch 290 W x 2 (2Ω) + 580 W x 1 (4Ω)
2Ch 580 W x 2 (4Ω)
Power supply voltage: 9 - 16 VDC
ldling current (power ON/OFF): 1.6A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 48 A
Remote In: 7 - 15 VDC - 1 mA
Distortion - THD (100Hz @ 4Ω): <0,06%
Bandwidth: 10 - 42 kHz
S/N Ratlo (A weighted @ 1 V): 102 dBA
Damping factor (100Hz @ 4Ω): 130
Pre-ln sensitivity: 0.2 - 5 VRMS
Pre-ln impedance: 10kΩ
Load impedance (MIN)
@4Ch:2 Ω
@3Ch:2 Ω + 2 Ω + 4 Ω
@2Ch: 4 Ω
Adjustable Crossovers yes
INPUTS / FILTERS
lnputs: PRE IN
Pre Out: Full range
A Ch:
A Ch. MONO (on/off): Yes
By-pass: Yes (Full)
Hi-Pass : 50 - 4k Hz @ 12dB/Oct
Lo-Pass: 50 - 4k Hz @ 12dB/Oct
B Ch: Yes
B Ch. MONO (on/off): Yes
By-pass: Yes (Full)
Hi-Pass: 50 - 4k Hz @ 12dB/Oct
Lo-Pass: 50 - 4k Hz 12@ dB/Oct
Bass boost 50 Hz (adjust): (0 - 12) dB
