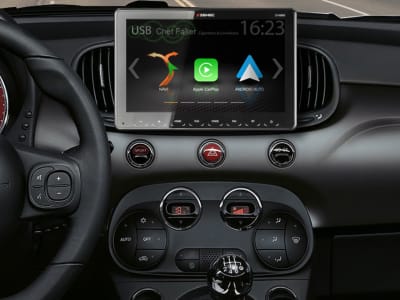

9“ display Infotainer, upgradable with navigation function*1
Touch sensitive, capacitive 9”/22.9 cm LCD-TFT display (1024 x 600 pixels) with glass surface and adjustable display*2
OSD menu in 15 different EU languages
DAB+ twin-tuner with dynamic station list, DAB<>FM and DAB<>DAB Service Following, MOT slideshow and DLS-text
FM RDS radio with 18 station presets
Google Android AutoTM
Apple CarPlay
Bluetooth 4.2 hands-free module with A2DP music streaming
Control of up to three cameras systems with auto switching, adjustable grid lines
CAM sensor key for direct camera control
SP-REM remote control App (iOS / Android) for smartphone operation of audio playback functions
2 x IR remote control incl. Maxi-remote
4 x 50 W amplifier
DAB+ receiver with twin tuner for DAB+ and TPEG
FM RDS radio with 18 station presets and DSP noise masking
USB(1) 2.0 port on device backside for CarPlay and Android AutoTM
USB(2) 2.0 port on device backside for A/V file*4 playback from USB memory device
5-CH time alignment by audio DSP (0 - 10 mS delay)
Graphical 10-band equaliser with 7 EQ-presets
Made for iPod/iPhone
High- and low-pass x-over for Front/Rear/Sub with 12 dB/oct. slopes
HDMI input for compatible accessories and mobile devices
24 Bit D/A converter
4.2 RCA line pre-out (3 V)
3 x RCA input for camera video signal (CVBS) with switched power supply and microphone-input (Cam1)
1 x DIN FM antenna input socket
1 x SMB DAB antenna input socket with 12 V phantom power supply
1 x USB(1) 2.0 port with ~1,000 mA charging current for Apple iOS and Android devices
1 x USB(2) 2.0 port for A/V file playback (~1,000 mA battery recharging current)
1 x RCA A/V input for 2-CH audio and video signal (CVBS)
1 x RCA A/V M-Zone output for 2-CH audio and video signal (CVBS)
1 x input for external Bluetooth microphone
Input for the connection of the programmable SWC interface
1 x IR-in for external CAN/SWC interface
1 x HDMI port
